SMD large square 36w 40w 48w 60w 60x60 cm 3000k 4000k 6500k wall ceiling led panel light with CE RoHS

FOB Reference Price:Get Latest Price
$12.20 - $15.82 / Piece | 1000 Piece/Pieces (Min. Order)
Lamp Power(W):
40 60 36 48
Model Number:
XGYPL-6060
Emitting Color:
Cold White
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
Report Suspicious Activity
Overview
Quick Details
Lamp Luminous Efficiency(lm/w):
80
Input Voltage(V):
AC85-265V
Lamp Luminous Flux(lm):
4800
CRI (Ra>):
80
Working Temperature(℃):
-25 - 45
Working Lifetime(Hour):
25000
Lamp Body Material:
PMMA+PS+PET+ALU
IP Rating:
IP65
Certification:
ce, EMC, FCC, LVD, RoHS, Saa, UL
Place of Origin:
China
Brand Name:
New lights/OEM
Light Source:
LED
Size:
600x600mm
Beam angle:
110 Degree
LED Chip:
SMD4041
Color Temp.:
2700-7000K
Total Lumen:
4800lm
PF:
0.9
Frame Color:
White silver
Item Type:
Panel Lights
Color Temperature(CCT):
COOL WHITE
LED Light Source:
LED
Warranty(Years):
2
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1 pc in a PE bag and protect with foam , then put into brown single box.
5pcs brown boxes in a master carton
OEM packing is available!
Port
Shanghai / Ningbo
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 15 To be negotiated
Specification
LED Panel light
Size
600*600mm
Wattage
32w/36w/40w/48w/60w
Color Temp
2700k-7000k
Material
Aluminum+PMMA
Lumen
2560 lm-4800 lm
CRI (Ra)
80
Beam Angle
110°
Life Time
25000hrs
Product Description

Material Details

Cover
UV Foam Cotton
Reflective Paper
Light Guide Plate
Diffuser Plate
Aluminum Frame

PCB

Super safty for the panel

The spacing between LGP and LED must control at 0.2mm, although the gap will reduce the lumen by 1%. But when there is no gap between the LGP and LED, the LGP will be expanded during to the heat might crush the LED. So the gap will completely avoids LED being squeezed by LGP as the thermal expansion

Advantages of LED light panel:

1. Energy saving about 70%;
2. Long life spane more than 5 years;
3. No infrared rays, no ultraviolet radiation, no thermal effect;
4. Ultra slim and unlimited design and various dimensions are available;
5. Soft and wide light emitting;
6. Special circuit design, avoided the single broken LED influence problem;
7. High efficiency constant current drive system, with heat protection system, can work under unstable voltage;
8. Instant start, no flickering, no humming, no RF interference.

Model No.
Size
Power
Color Temp
Beam Angel
PF
CRI(Ra)
XGYPL-E32
600mm*600mm
32w
2560 lm
110°
0.9
80
XGYPL-E36
600mm*600mm
36w
2800 lm
110°
0.9
80
XGYPL-E40
600mm*600mm
40w
3200 lm
110°
0.9
80
XGYPL-E48
600mm*600mm
48w
3800 lm
110°
0.9
80
XGYPL-E60
600mm*600mm
60w
4500 lm
110°
0.9
80

Related Products

Certifications

All our certifications are real,
NOT FAKE, NOT FAKE, NOT FAKE,
Feel free to contact me, we can send you for checking!



Production Process
Packing & Delivery
Package.
1 pc in a PE bag and protect with foam , then put into brown single box.
5pcs brown boxes in a master carton
OEM package are available

Reference Carton Size
Model No.
Size
Voltage
Pcs / Ctn
Carton Size
XGYPL-6060
600mm*600mm
AC85-265v
5
635*225*670mm

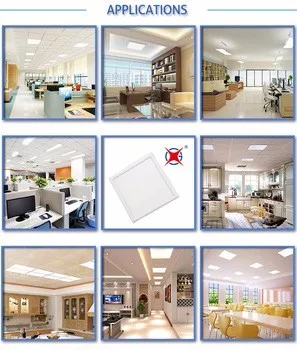

Applications

Applications
LED panel light mainly used in industrial lighting, and also can be widely used in shopping mall, hospital,conference room, office, optothermal control relatively strong laboratory, etc.
